BIAS (Bias-ply tire)

C2/G7 BIAS OTR TIRE

23.1-26 bias OTR tire, 12/14/16PR, mine tread, rear wheel for short haul on mine & mixed roads. Max load 5050/5560/6150kg @200kPa, rim DW20, TT/TL. 587mm width, 1605mm OD.

Specifications

Pattern
C2/G7

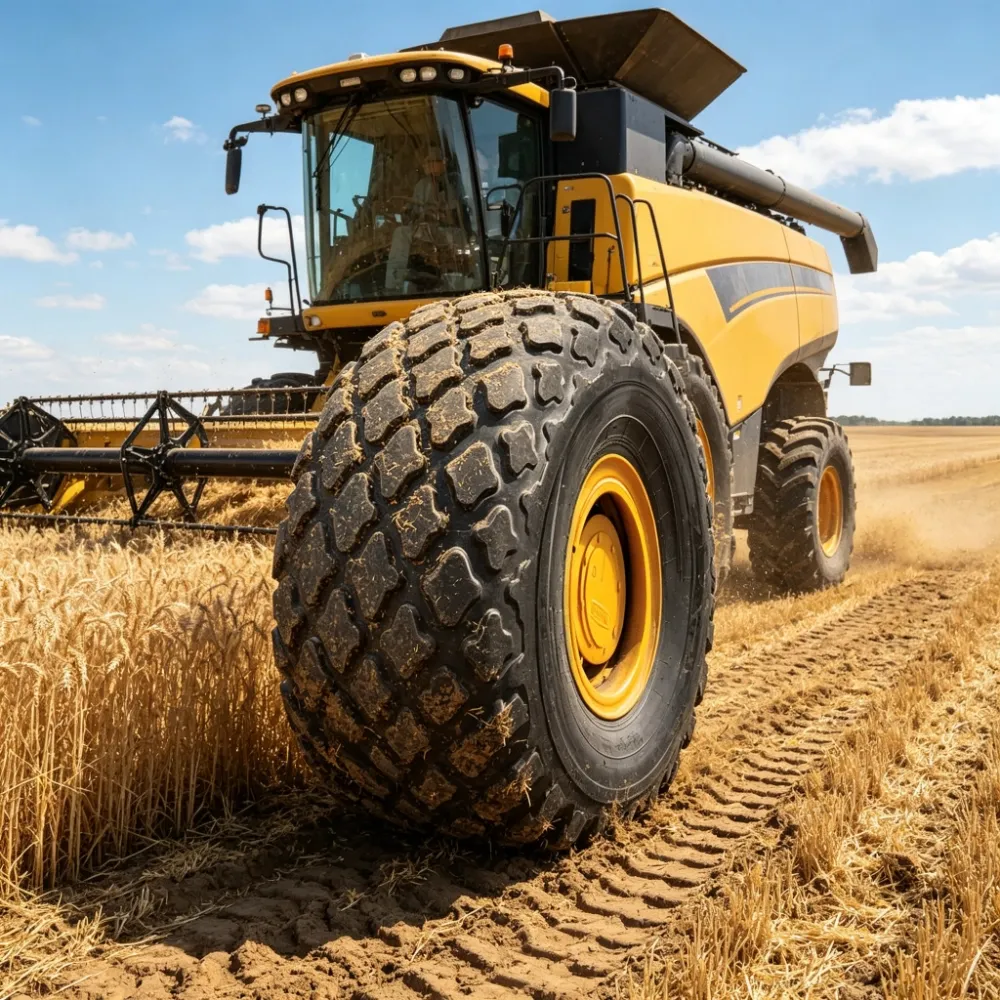

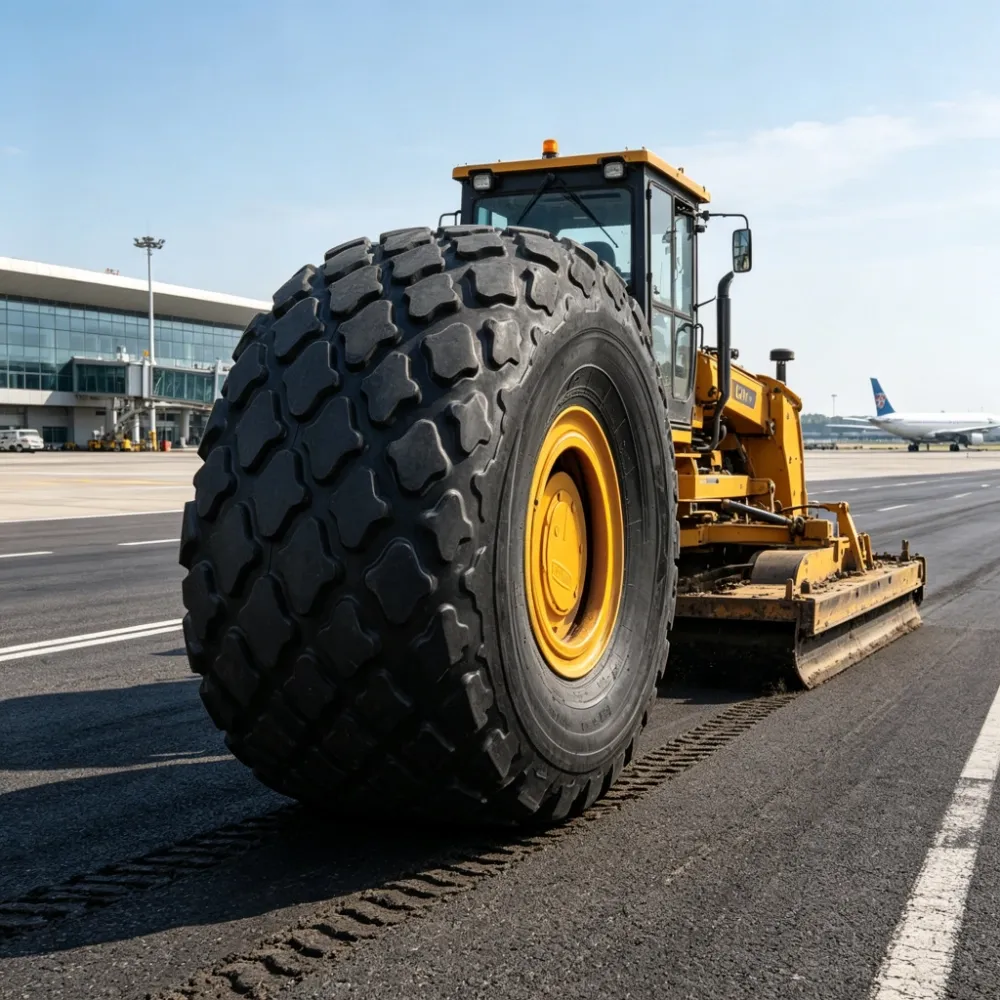

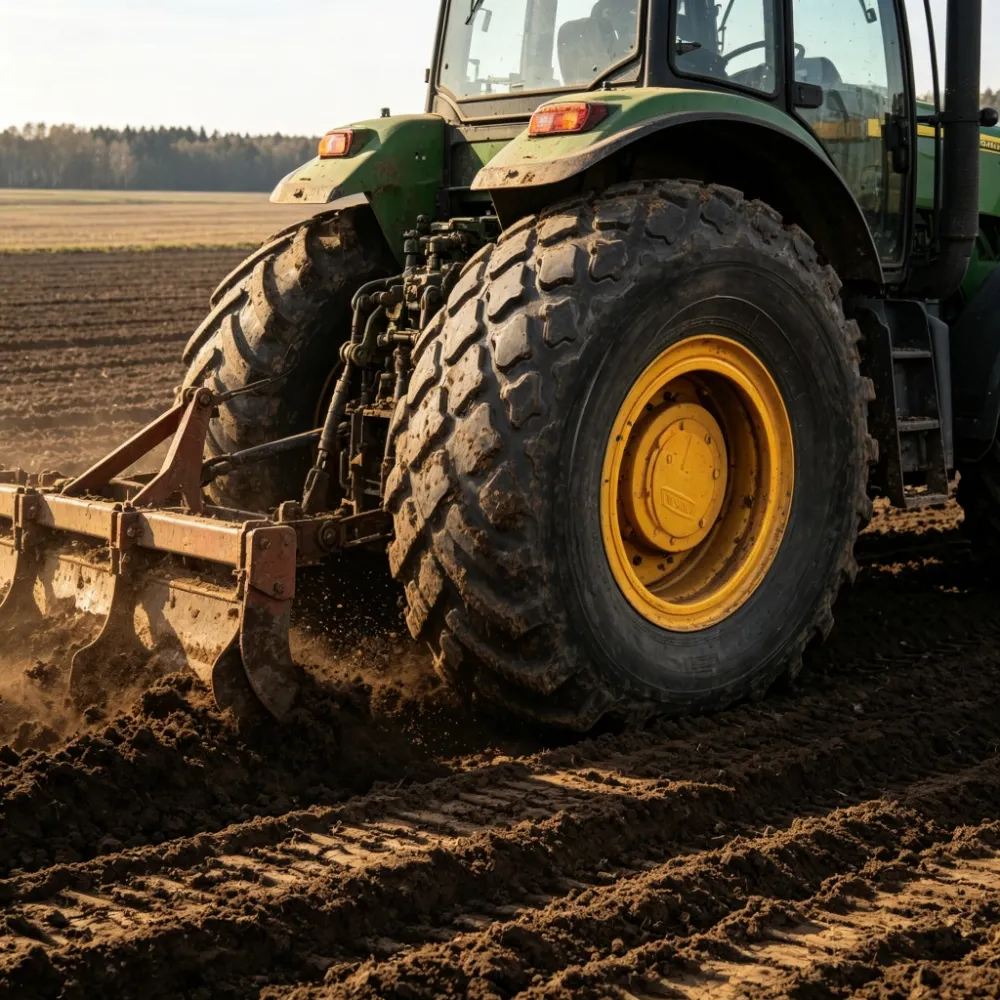

C2/G7 OTR bias tire 23.1-26, 12/14/16 PR, max load up to 6150kg. Fits motor graders, high-horsepower tractors and combine harvesters, delivering stable traction and durability on airport, farm and harvesting applications.

SIZE
P.R.
Standard Rim
Section Width (mm)
Overall Diameter (mm)
Max Load (kg)
Inflation Pressure (Kpa)
Tube /Tubeless
23.1-26
12
DW20
587
1605
5050
200
TT/TL
14
5560
16
6150
