BIAS (Bias-ply tire)
E-3/L-3 BIAS OTR TIRE
Bias OTR tire 23.5-25 24PR with mine pattern, designed for rear wheel of mining truck on short distance mine/mixed roads. Max load 10900kg, pressure 375kPa, rim 19.50/2.5, TT/TL.
Specifications
- Pattern
- E-3/L-3

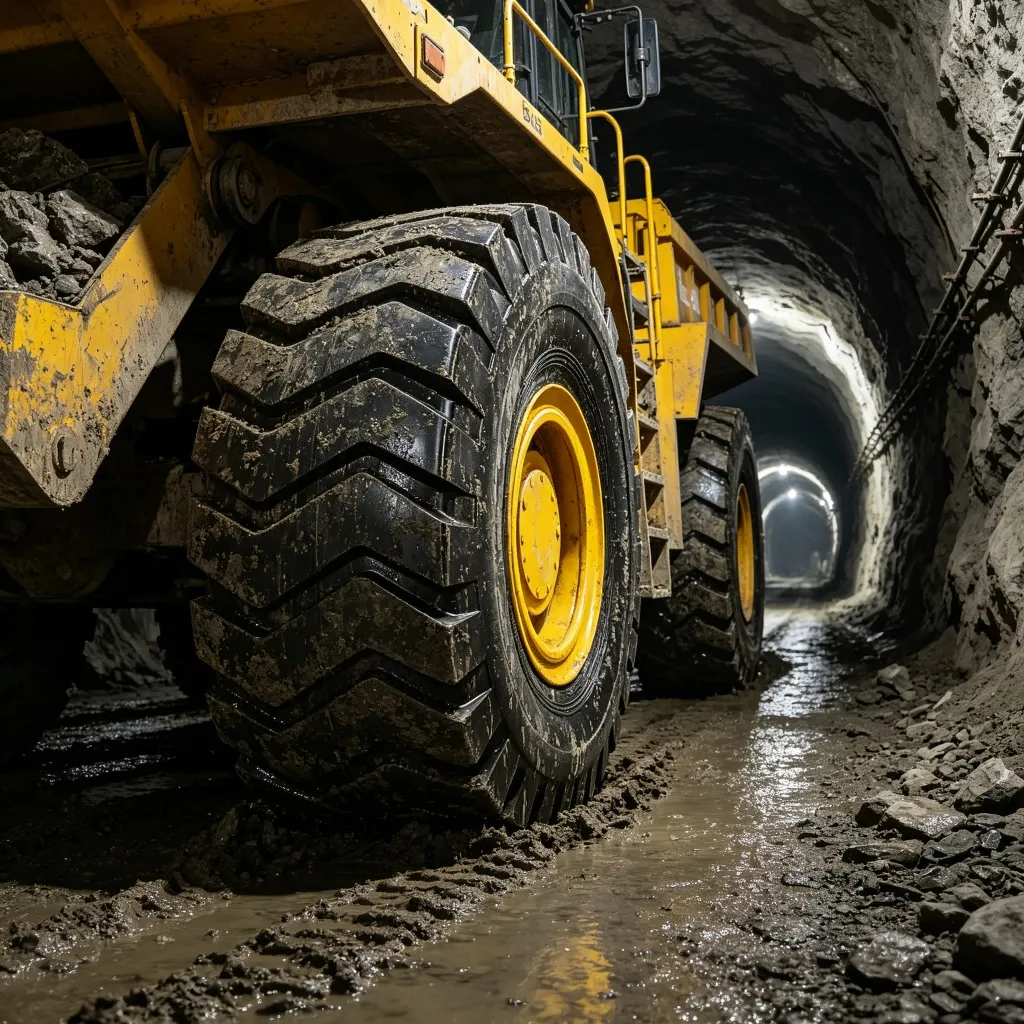

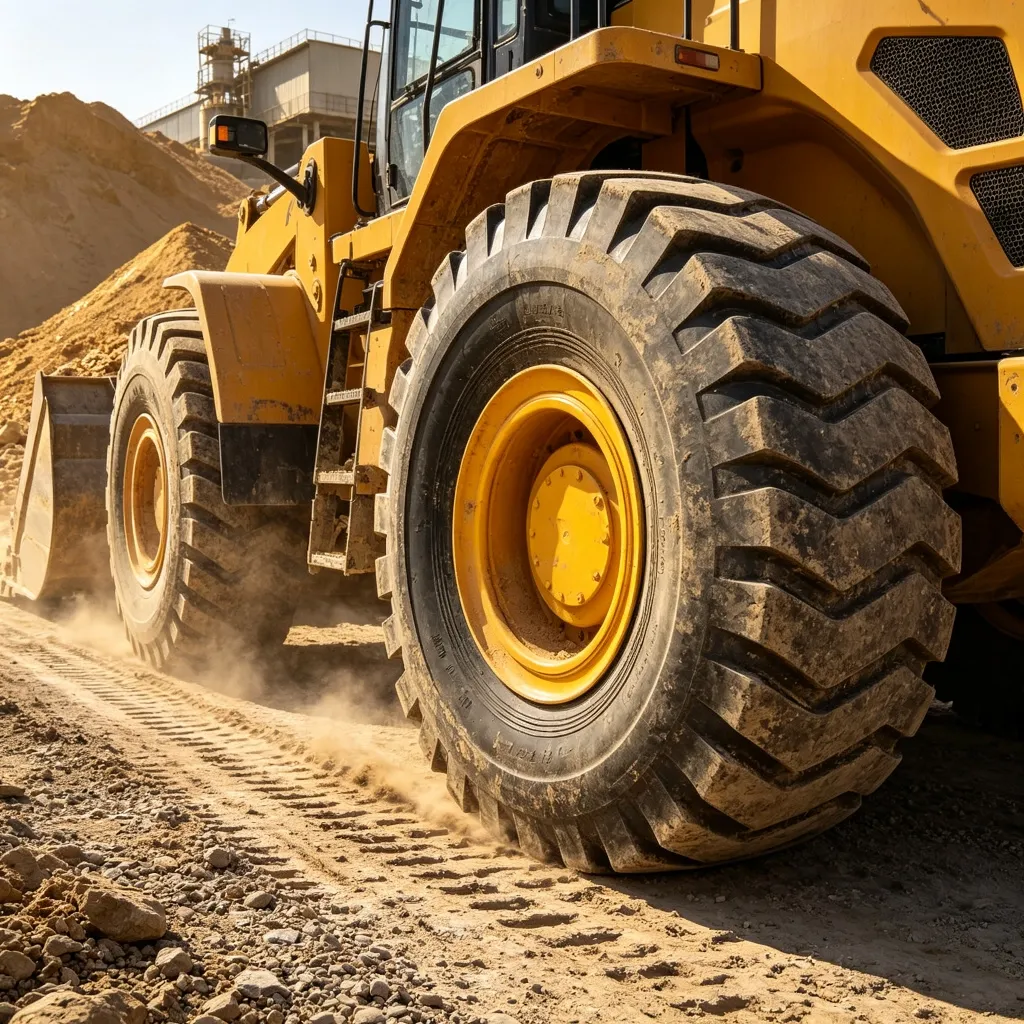

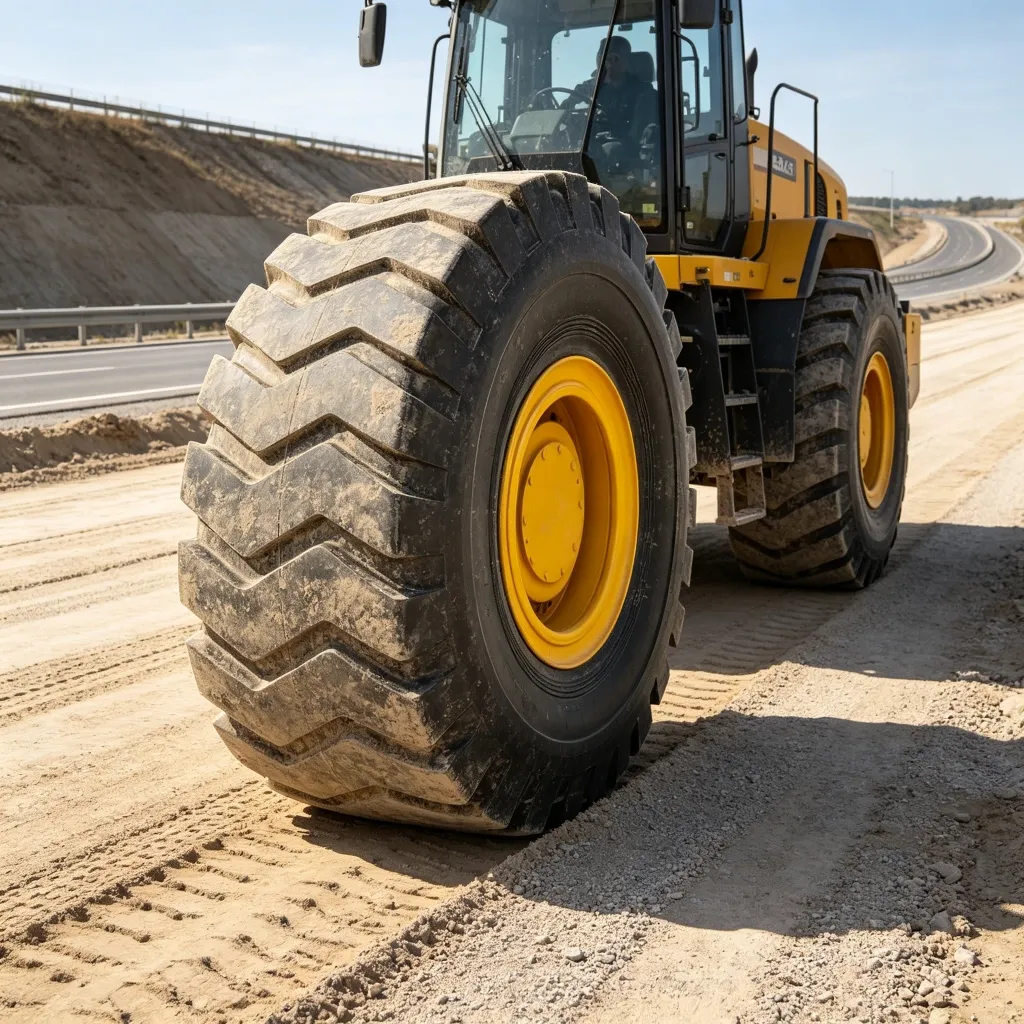

E-3/L-3 OTR bias tire 23.5-25, 24 PR, max load 10900kg. Fits 5-ton wheel loaders, motor graders and underground LHDs, delivering excellent traction and durability on mining, road and underground applications.
Size | P.R. | Standard Rim | Section Width (mm) | Overall Diameter(mm) | Max Load (Kg) | Inflation Pressure(Kpa) | Tube / Tubeless |
23.5-25 | 24 | 19.50/2.5 | 595 | 1615 | 10900 | 375 | TT TL |
