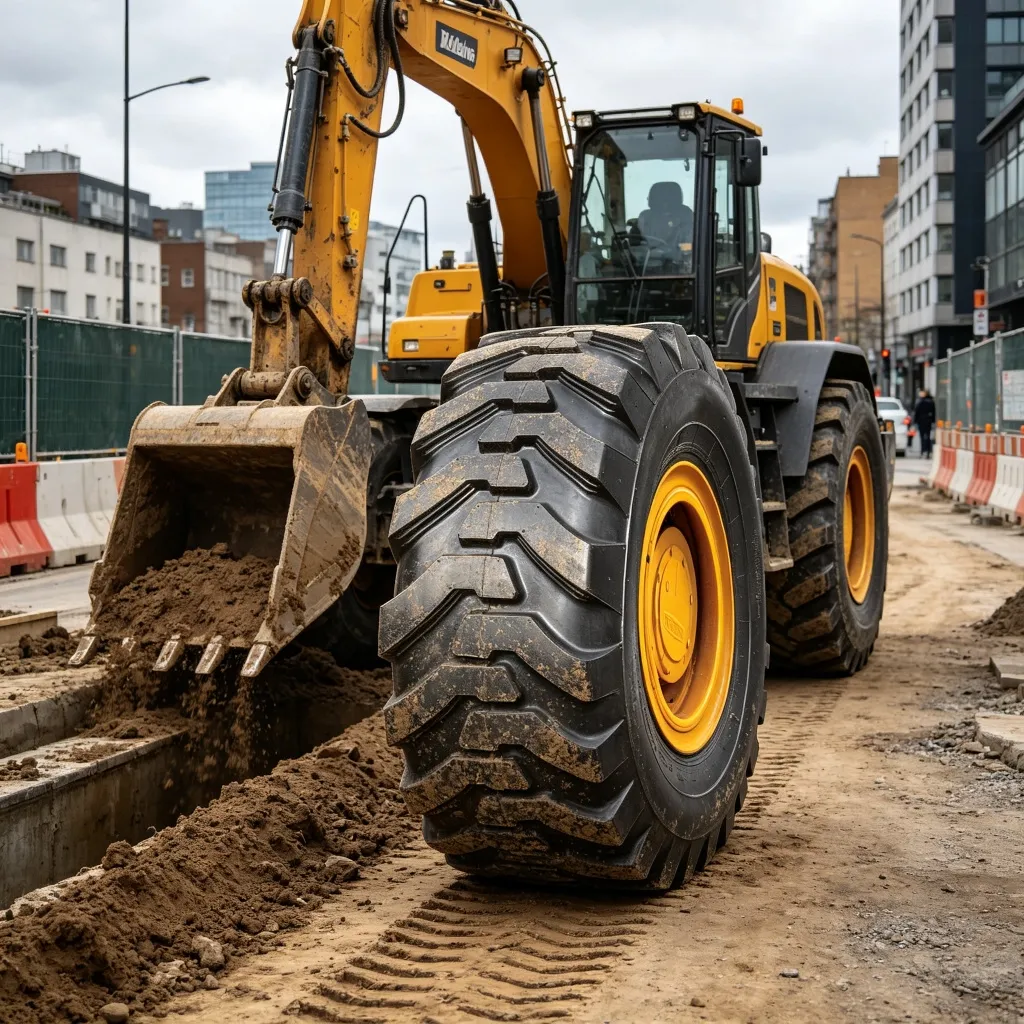

otr-r4-16-9-28-backhoe-loader-municipal

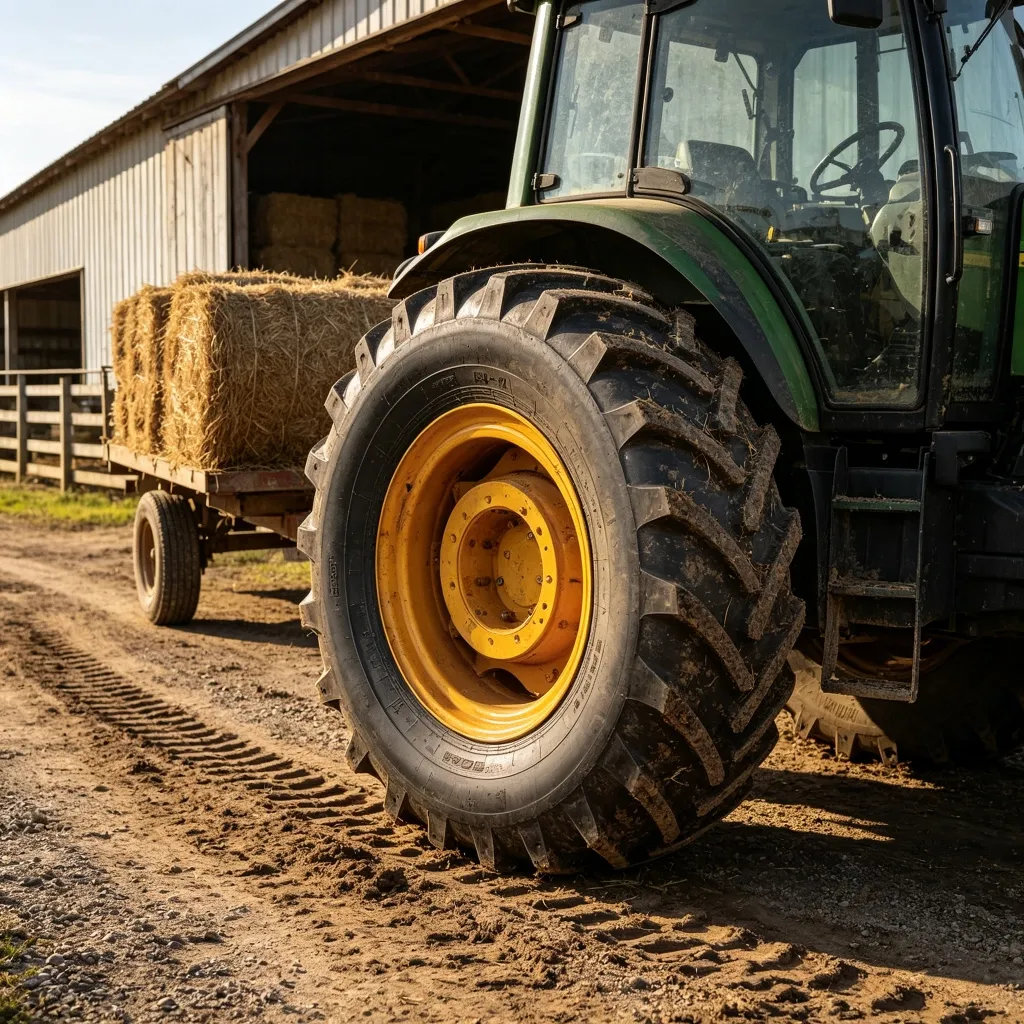

otr-r4-16-9-28-industrial-tractor-farm

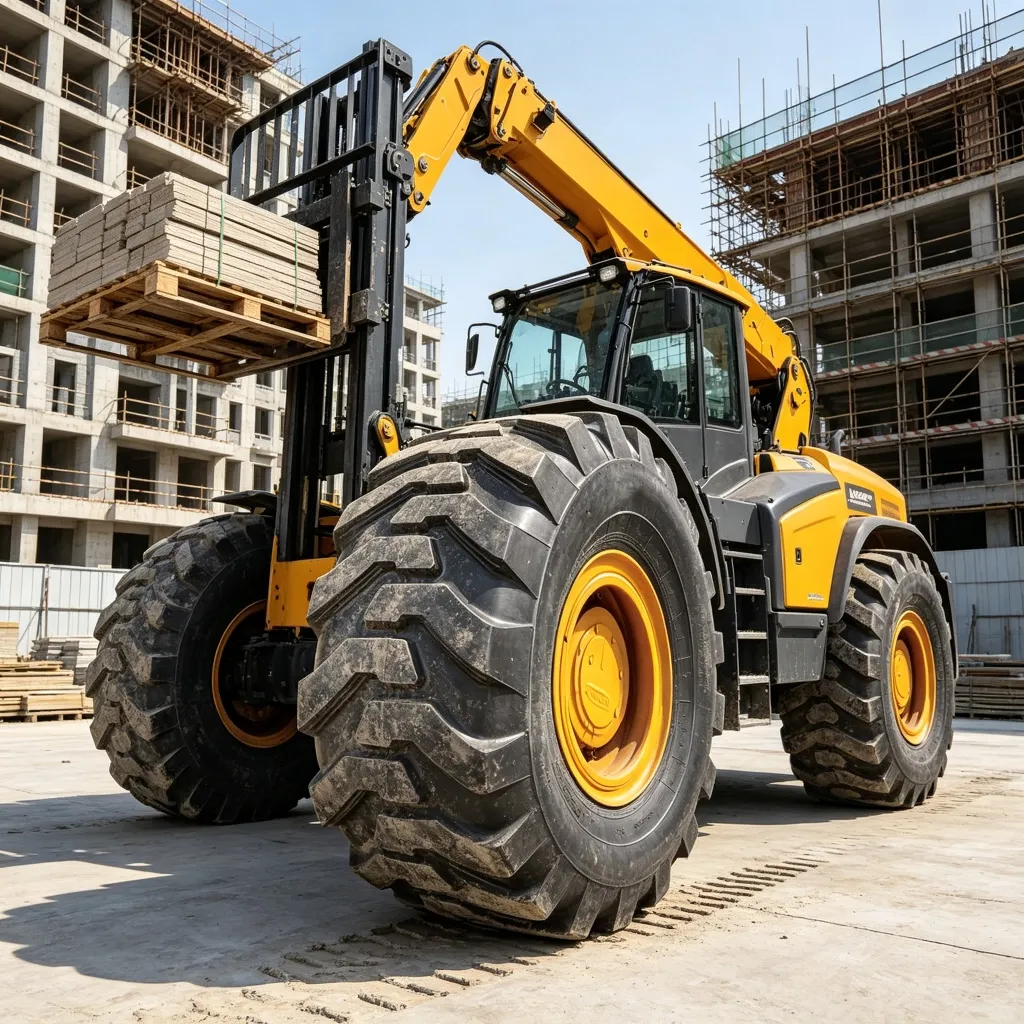

otr-r4-16-9-28-telehandler-construction
BIAS (Bias-ply tire)

R4 BIAS OTR TIRE Copy

16.9-28 14PR bias OTR tire, mine tread, for rear wheel of mine truck on short hauls. Max load 3700kg @300kPa, rim W15L, TL. Width 429mm, OD 1435mm.

Specifications

Pattern
R4
R-4 OTR bias tire 16.9-28, 14 PR, max load 3700kg, tubeless. Fits backhoe loaders, telehandlers and industrial tractors, delivering reliable traction and durability on municipal, construction and farm applications.
Size
P.R.
Standard Rim
Section Width (mm)
Overall Diameter(mm)
Max Load
(Kg)
Inflation Pressure(Kpa)
Tube / Tubeless
16.9-28
14
W15L
429
1435
3700
300
TL
